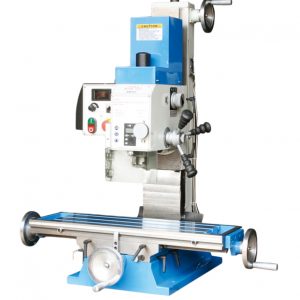

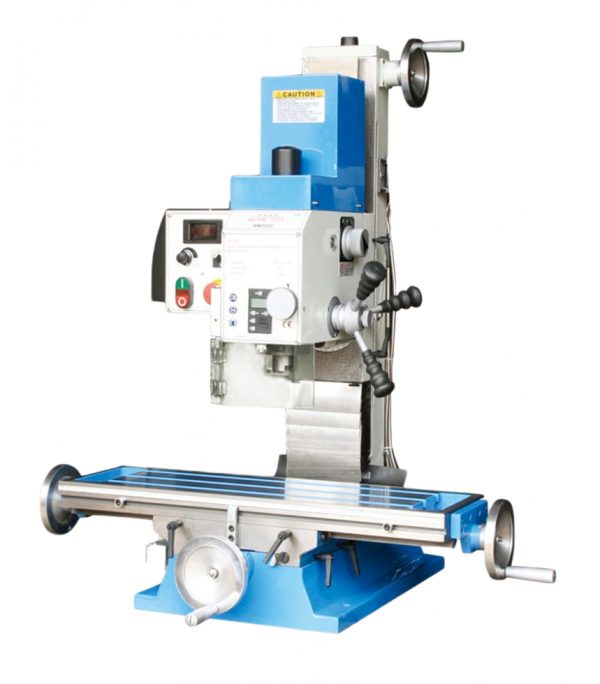

Drilling&Milling Machine W30
Product Feathers:
Gear head and square colum
Precision ground worktable
Tilting and swiveling head
With Mirco-feed hand wheel and lever down feed
Adjustble gibs on table
Adjustable stops on table
Accurate position ,strong rigidity,strong cutting power
Gear drive ,lower noise
Standard Accessories:
· Speed display
· Depth ruler
· Arbor MT2/B16,M10
· Drill chuck 3-16mm
· Operating tools
Optional Accessories:
· ER25/6PCS collet chuck (4-16mm)
· End mill 7pcs (4-16mm)
· 58pcs of clamping kits/M10X11.7mm
· Keyless Drill chuck 3-16mm
· Stand&chip tray
· Digital Readout
· X-axis power feed
| Specification | W30 Vario | W30L Vario |
| Drilling capacity | Φ32mm | Φ32mm |
| Max. end milling capacity | Φ25mm | Φ25mm |
| Face milling capacity | 80mm | 80mm |
| Working table size | 700×210mm | 840×210mm |
| Spindle rotary angle | ±45° | ±45° |
| Spindle taper | MT3 or R8 | MT3 or R8 |
| Spindle speed | 50-2250rpm | 50-2250rpm |
| X-axis travel | 425mm | 565mm |
| Y-axis travel | 220mm | 220mm |
| Z-axis travel | 360mm | 360mm |
| T-Slot | 14mm | 14mm |
| Motor power | 1100w | 1100w |
| N.W/G.W | 220/250kgs | 240/275kgs |
| Packing size | 710×890×1150mm | 850×890×1150mm |
